STANDARD FEATURES
- The QT-100 , 100,000 psi high tensile frame enhances stability
- Engineered flared end I beam crossmembers
- Lightweight radius corner tub shape box design
- Light weight Hardox 450 box construction
- Hendrickson 30,000lb air ride suspension
- Custom 5 stage telescopic hoist
- Pro-Tarp 18” high bow retractable PVC load cover
- Standard equipped with LED lights
- Endura Plastic Paint
- 3 year limited box warranty
- 5 year limited frame warranty
- Weight 7,499 kgs on Steel Wheels
© CANUCK TRAILER MANUFACTURING LTD.
BOX 5, CARTWRIGHT, MANITOBA, CANADA R0K 0L0
Toll Free: 1-877-322-6825
[HOME] [DEALERS] [RB-3500] [SB-3500] [SB-2800] [TRIDEM PICKER FLOAT] [TRIDEM END DUMP]
* Flange - 1/2 x 4.5’’ 100,000 psi High Tensile Steel
* I-Beam - Double Goose Neck, for added Fifth Wheel Height
* Cross Members - Laser cut Flared High Tensile Steel
* Box tipping sills - .25" Formed Material
* Box Sides - 41’ Formed 12 Ga./Replaceable inside liner
* Tailgate - 12 Ga. Formed/back double lined
* Box Hinge - Extra strong 2’’ pivot pin
* Tailgate Hinge pin - Extra strong 1.5’’ pin
* Main Cylinder - Custom Hoist 265
* Slack Adjusters - Arvin Meritor Automatic R801074
* ABS System - Wabco
* Tailgate Latch - Manufactured by Canuck Trailer
* Paint - Endura 5-year company warranty
* Spare Tire Holder - 1.25’’ Tube
* Frame I-Beam - QT 100,000 psi
* Box Floor - AR-200 3/16, Rounded Sides 12’’ up
* Axles - Arvin Meritor Rockwell 25,000 lb.

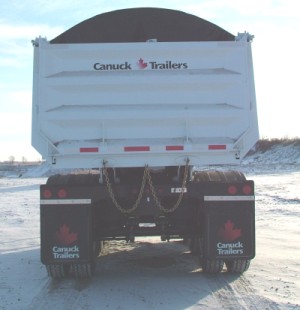

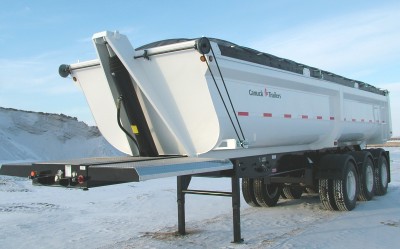

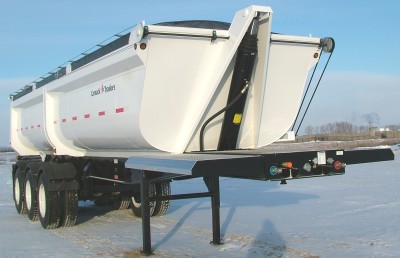

Canuck's RB-3500 end dump trailers are designed and constructed using highly advanced computerized technology, which allows these all-steel units to offer extreme durability, plus performance and still be a plus with today's compatible market. Canuck's trailers are fully backed by a tough five year limited warranty.
Our RB-3500 comes in various configurations:
Full frame Light weight option Greater stability Internal ground harness Webco ABS Better weights Better payloads
|
